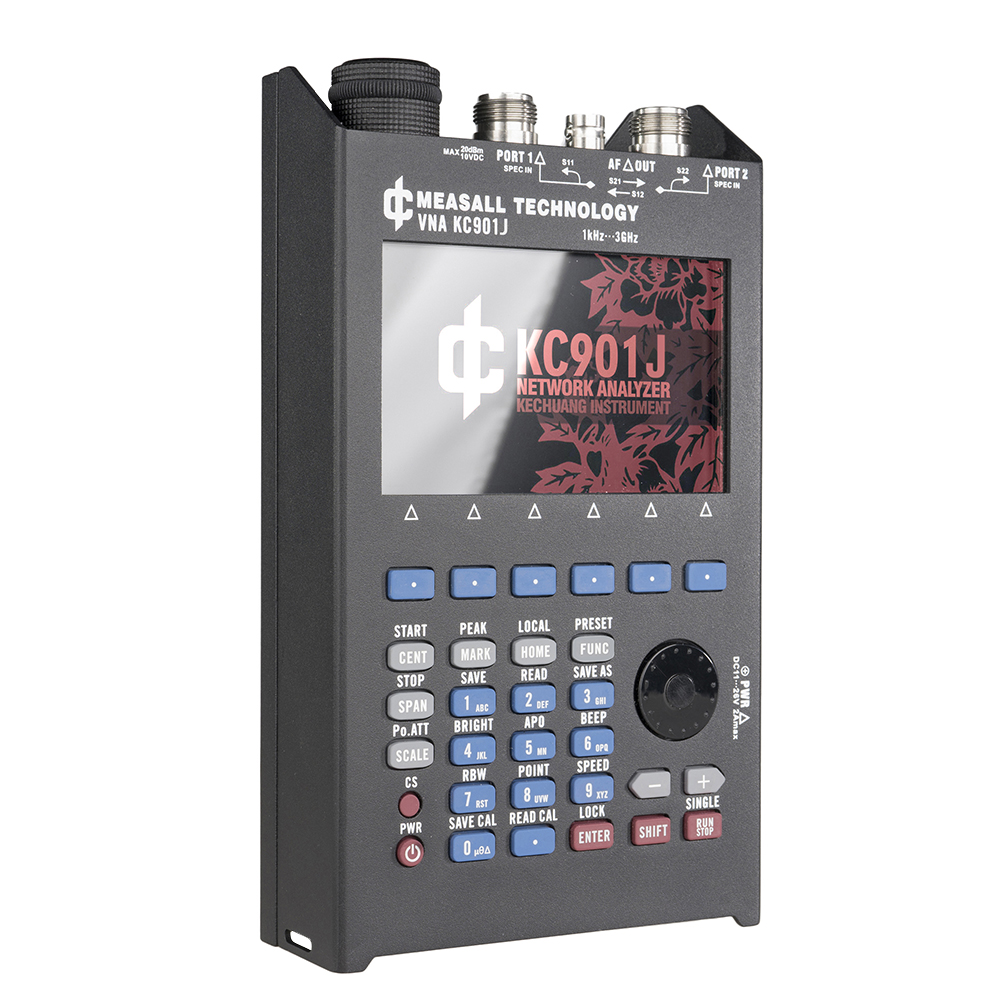

MEASALL Dual Ports Handheld Network Analyzer KC901J 1kHz-3GHz
$1,299.00
Tax excl. VAT added at checkout by shipping address.
- 1KHz-3GHz frequency range
- Transmission dynamic range 100dB
- Multi calibration support
- Built-in RF&AF generator function
- 60dB output setting range
- Lightweight, reliable and easy to operate
Buy from Deepace Official
Delivery 10 days or fastest 4-7 days
2 Years Warranty 7 days Refund
KC901 Dual-port network analyzer introduction page click here
Product Highlight
- 1kHz-3GHz frequency range
- 1Hz frequency resolution
- >42dB directionality (after calibration)
- Transmission dynamic range 100dB
- Multi calibration support
- Built-in RF&AF generator function
- Lightweight, reliable and easy to operate
Product Features
- S11/S12/S21/S22 measurement

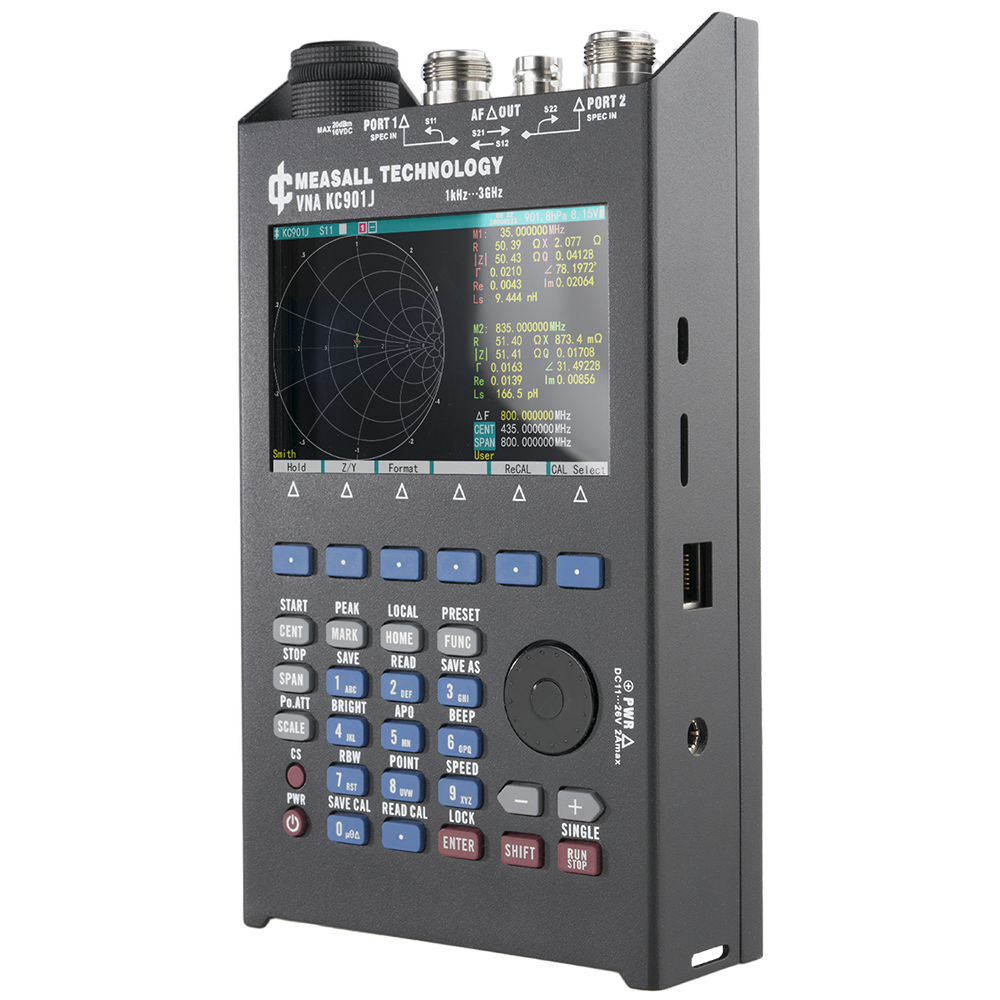

- Phase/Return loss/VSWR/SmithChart/Impedance measurement result display
- Spectrum display and Field mode
- RF/AF generator with modulation and level adjusting
- Data save in TF cards
- PC software connection
Technical Parameter

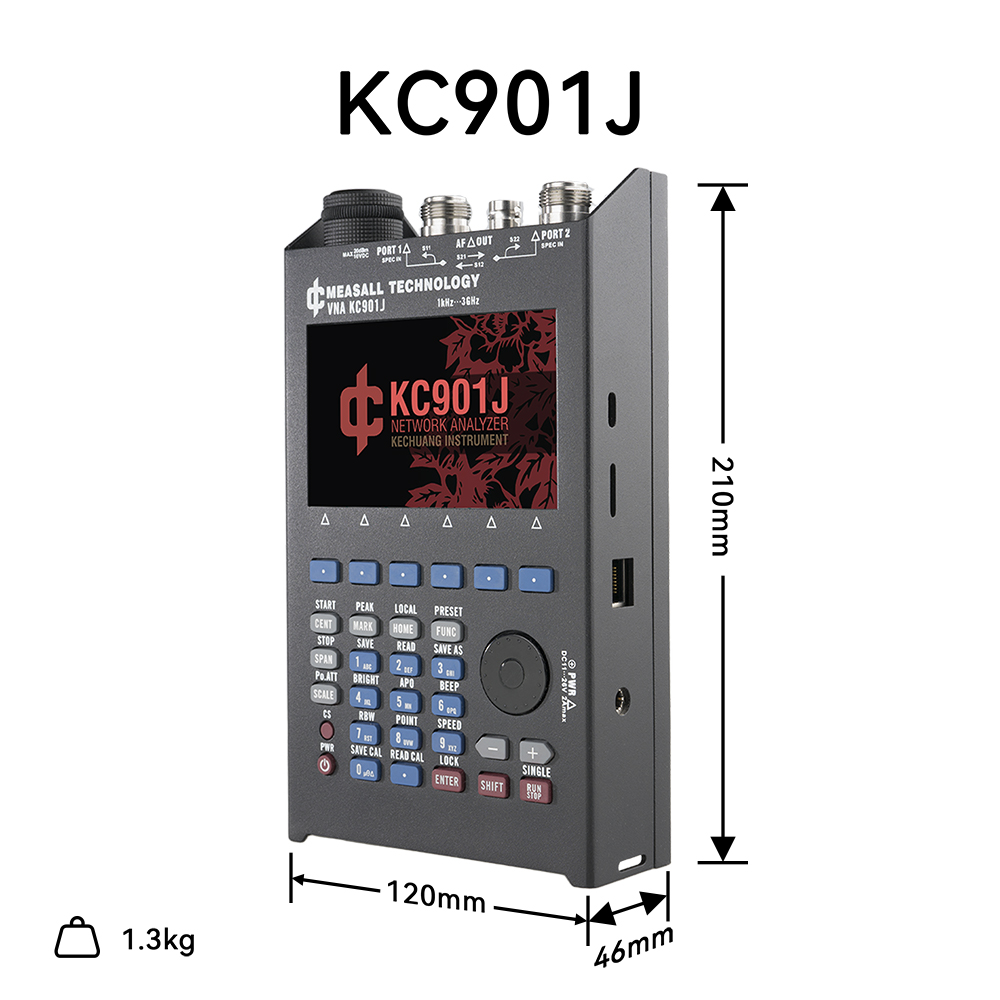

| Item | Test Condition | Typical Value | Note | ||||
|---|---|---|---|---|---|---|---|
| KC901J | KC901K | KC901R | KC901T | KC901B | |||
| Sweep Speed | RBW=30kHz, per point | 0.7ms | |||||
| RBW=10kHz, per point | 0.8ms | ||||||
| RBW=6kHz, per point | 1.2ms | ||||||
| RBW=1kHz, per point | 5ms | ||||||
| RBW=10K, 201-point sweep | 0.2s | ||||||
| Output Level in All Sweep Modes (at Maximum Setting) | 1MHz-4GHz | 3dBm | 3dBm | 3dBm | 3dBm | 10dBm | |
| 4GHz-7GHz | 0dBm | 0dBm | 6dBm | ||||
| 7GHz-9.8GHz | -3dBm | 3dBm | |||||
| 9.8GHz-22GHz | 3dBm | ||||||
| Maximum Output Level in Fixed-Frequency Mode | 1MHz-7GHz | 3dBm | 3dBm | 3dBm | 3dBm | 13 | |
| 7GHz-22GHz | 0dBm | 10 | |||||
| Output Gain Range | -30dB~+30dB (60dB total) | ||||||
| Sensitivity (Noise Floor) | 1MHz-4GHz | -100dBm | -100dBm | -97dBm | -97dBm | -107dBm | RBW=1kHz |
| 4GHz-7GHz | -93dBm | -93dBm | -107dBm | ||||
| 7GHz-22GHz | -90dBm | -100dBm | |||||
| Usable Dynamic Range for Transmission Measurements | 1MHz-3GHz | 100dB | -- | Equivalent to Tx/Rx Channel Isolation | |||
| 3GHz-6GHz | 97dB | 105dB | |||||
| 6GHz-9.8GHz | 90dB | 90dB | 100dB | ||||
| 9.8GHz-22GHz | 95dB | ||||||
| Transmission Amplitude Uncertainty | 1MHz-9.8GHz | 0.2+0.03L | When insertion loss is at least 20dB below the isolation level | ||||
| 9.8GHz-22GHz | 0.3+0.05L | ||||||
| S11 Relative Directivity | 9kHz-7GHz | 45dB | 40dB | After calibration; reliable over 90% of the range | |||
| 7GHz-9.8GHz | 35dB | ||||||
| 9.8GHz-22GHz | 30dB | ||||||
| Return Loss Uncertainty | 3dB<RL<25dB | 0.5+0.1RL | After thru calibration | ||||
| Phase Uncertainty | 100kHz-1GHz | 2° | When reflection coefficient ρ > 0.25 | ||||
| 1GHz-9.8GHz | 5° | ||||||
| 9.8GHz-22GHz | 15° | ||||||
| Port VSWR | 1MHz-9.8GHz | 1.5 | Measured in 0 SPAN mode | ||||
| Trace Noise | RMS Value | 0.005dB | 0.01dB | Under thru or full-reflection conditions | |||
| IF Feedthrough Suppression | 30dB | ||||||
| Frequency Stability, per Year | 1ppm | ||||||
| Supply Voltage | Charging Port | 11V-32V | |||||
| AC Power Adapter | 105V-230V | ||||||
| Internal Battery | 6.5V-8.4V | ||||||
| Damage Level | All Ports | DC15V,+20dBm | |||||
| Dimensions | 210×122×46mm (L×W×T) | ||||||
| Weight | Main Unit (Including Battery) | 1.4kg | |||||
| Complete Package (Standard Configuration) | 2.5kg | ||||||
What in package
- KC901J *1
- User manual *1
- Calibration certification *1
- DC adapter *1
- Strap *1
