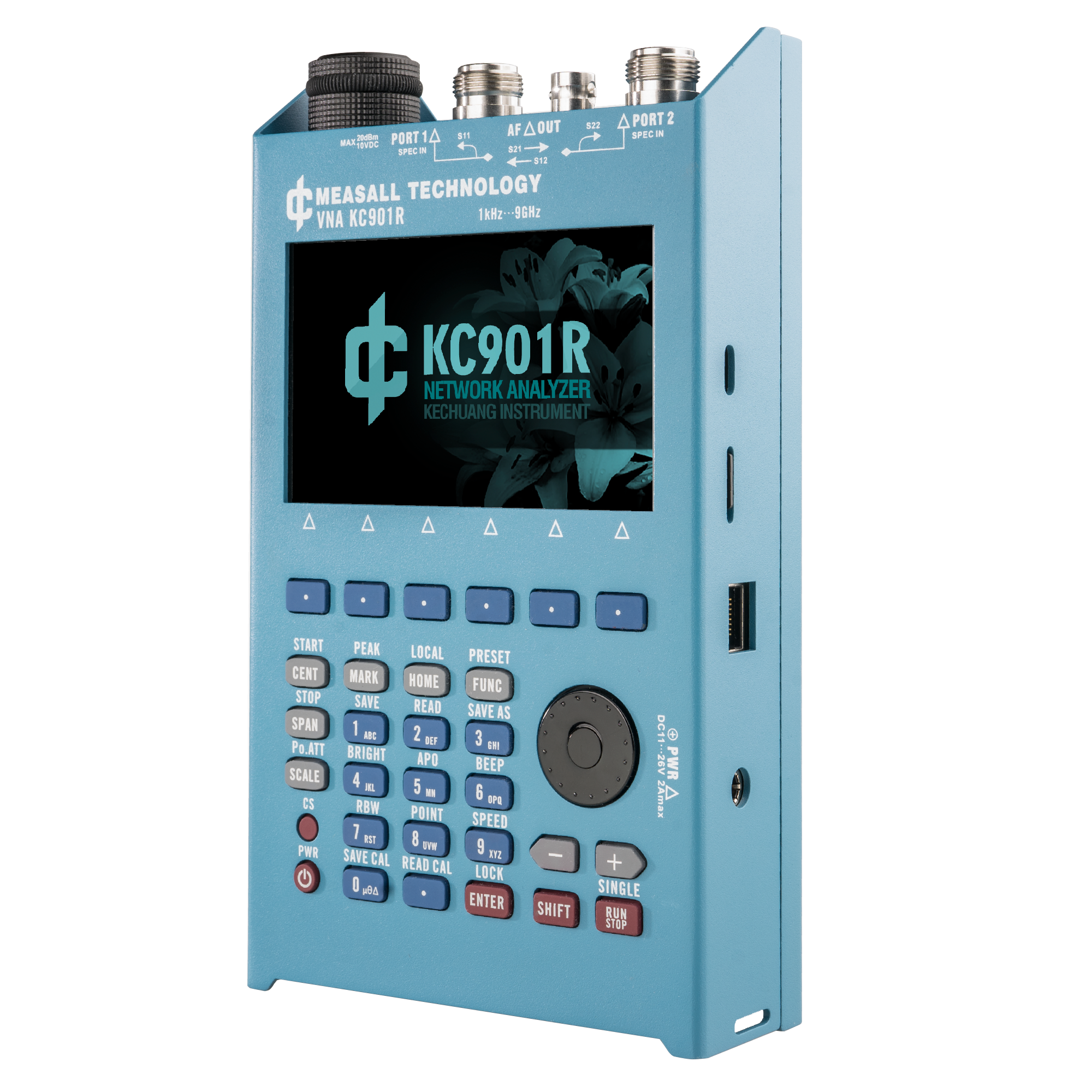

MEASALL Dual Ports Handheld Network Analyzer KC901R 5kHz-7GHz

Original price was: $2,199.00.Current price is: $1,999.00.

Tax excl. VAT added at checkout by shipping address.

  • 5KHz-7GHz frequency range
  • Transmission dynamic range 100dB(4GHz), 90dB(7GHz)
  • Multi calibration support
  • Built-in RF&AF generator function
  • 60dB output setting range
  • Lightweight, reliable and easy to operate
SKU: 901r Category:

Buy from Deepace Official

Delivery 10 days or fastest 4-7 days

1 Year Warranty 7 days Refund

Product Highlight
  • 5KHz-7GHz frequency range
  • 1Hz frequency resolution
  • >42dB directionality(after calibration)
  • Transmission dynamic range 100dB(4GHz), 90dB (7GHz)
  • Multi calibration support
  • Built-in RF&AF generator function
  • Lightweight, reliable and easy to operate
Product Features
  • S11/S12/S21/S22 measurement

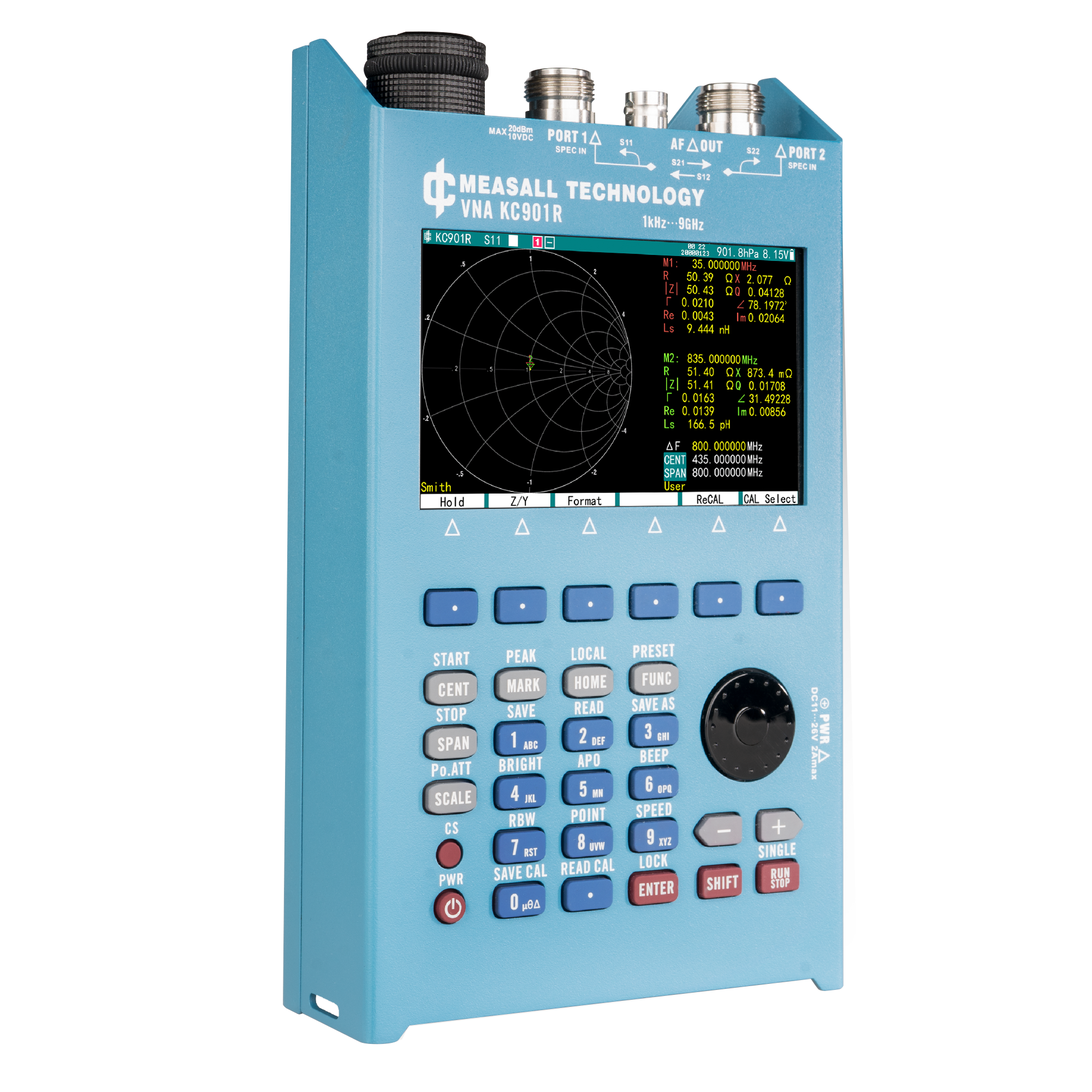

  • Phase/Return lose/VSWR/SmithChart/Impedance measurement result display
  • Spectrum display and Field mode
  • RF/AF generator with modulation and level adjusting
  • Data save in TF cards
  • PC software connection
Technical Parameter

Obj Condition Typical parameter note
KC901J KC901K KC901R KC901T
Measurement speed RBW=30kHz, per point 0.8ms When calibration is turned on, one set of measurements is taken in each scanning point of S21/S12 in both forward and reverse directions, with the speed reduced to ½.
RBW=10kHz, per point 1ms
RBW=6kHz, per point 1.2ms
RBW=1kHz, per point 3ms
RBW=10K,201pt per screen 0.2s
Output level for all modes (maximum gain) 1MHz-4GHz 3dBm
4GHz-6GHz 0dBm 0dBm
6GHz-10GHz -3dBm
10GHz-22GHz
Output adjustable range 60dB
Noise floor 1MHz-4GHz -107dBm RBW=1kHz
4GHz-6GHz -100dBm -100dBm
6GHz-22GHz -90dBm
Dynamic range for transmission measurements 1MHz-1GHz 100dB Equivalent to transceiver isolation
1GHz-4GHz 93dB
4GHz-10GHz 90dB 80dB
10GHz-22GHz
Magnitude uncertainty of transmission measurements 1MHz-10GHz ± (0.2+0.02L) insertion loss is less than the isolation by more than 20 dB
10GHz-22GHz ± (0.3 + 0.02 L)
Return loss uncertainty 3dB<RL<25dB ± (0.5 + 0.1 RL) At <20dB
Uncertainty of phase 100kHz-1GHz Return loss <20dB
1GHz-10GHz
10GHz-22GHz
VSWR of the port 1MHz-10GHz 1.5 static value
Tracer noise RMS value 0.005dB Loss <10dB
IF Feedthrough Suppression 30dB
Frequency stability, per year 1ppm
Supply Voltage DC 11V-32V (charger socket), 5V (Type-C port)
AC Power Adapter 105V-230V
internal battery 6.5V-8.4V
Damage level All Ports DC15V, +20dBm
Screen resolution 800×480px

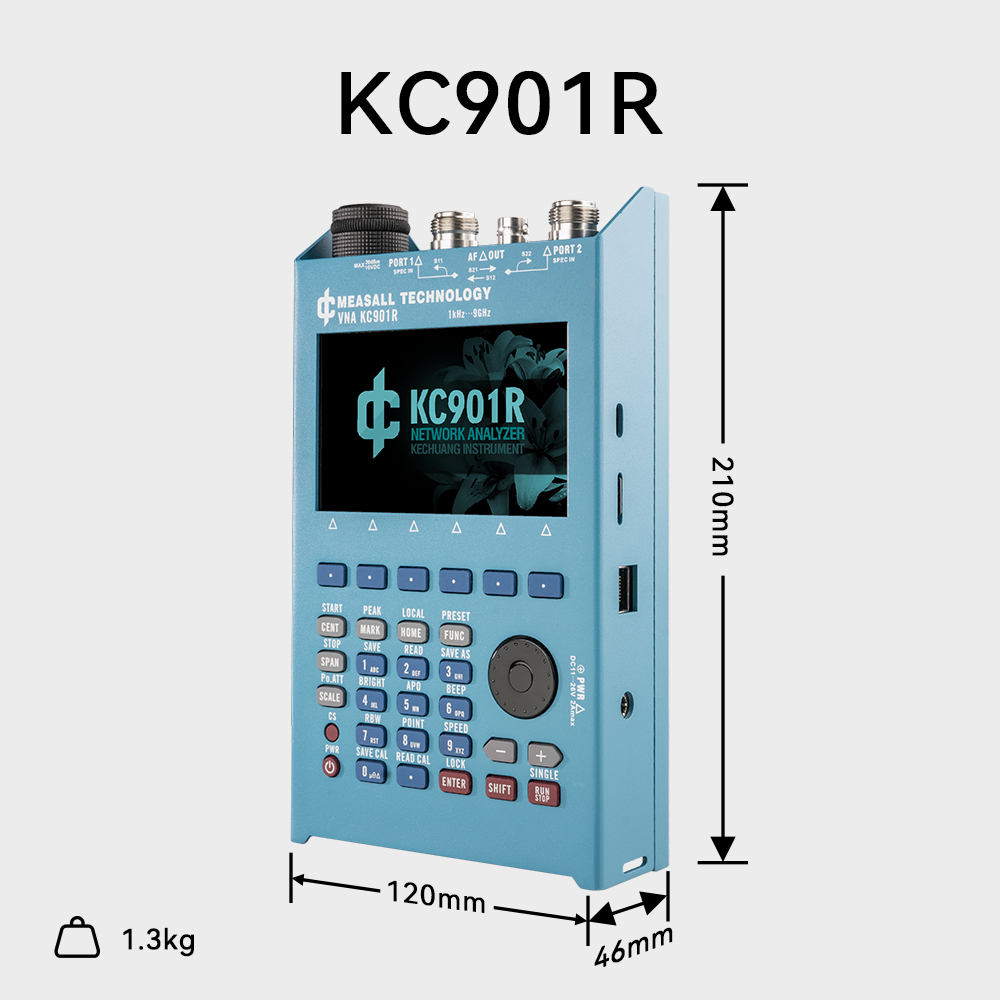

Dimensions 200×114×46mm (L×W×T)
Weight Instrument(with battery) 1.3kg
Whole package in standard configuration 2.5kg
What in package
  • KC901R *1
  • User manual *1
  • Calibration certification *1
  • DC adapter *1
  • Strap *1
