Description
UWB-4 wide band dipole antenna is a kind of bow-tie antennaIt. is suitable for omnidirectional wireless signal transmission and reception, signal coverage, broadband signal test and other purposes.
Basic parameters
Frequency range: 1.8GHz-9GHz
Polarization mode: linear polarization
Rated gain: 3.5dBi

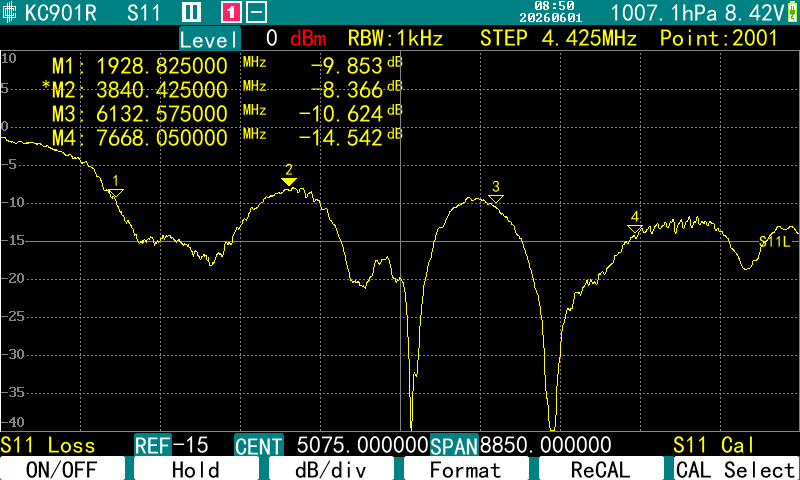

Return loss: 10dB
Power capacity: 5W
Connector type: SMA-K
Mechanical parameters:

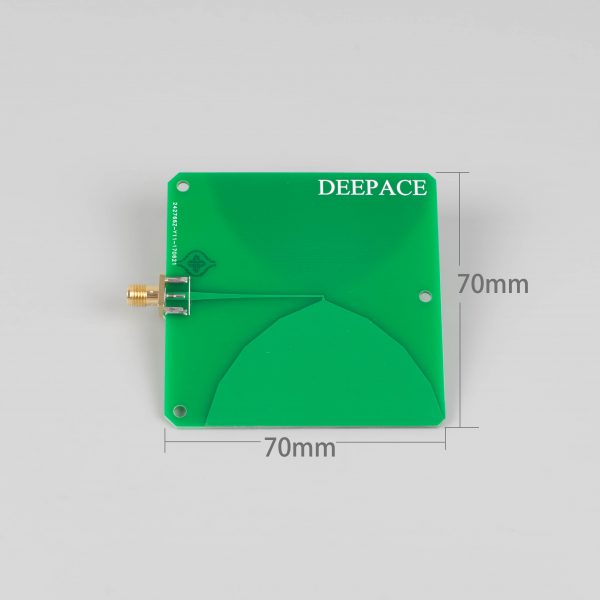

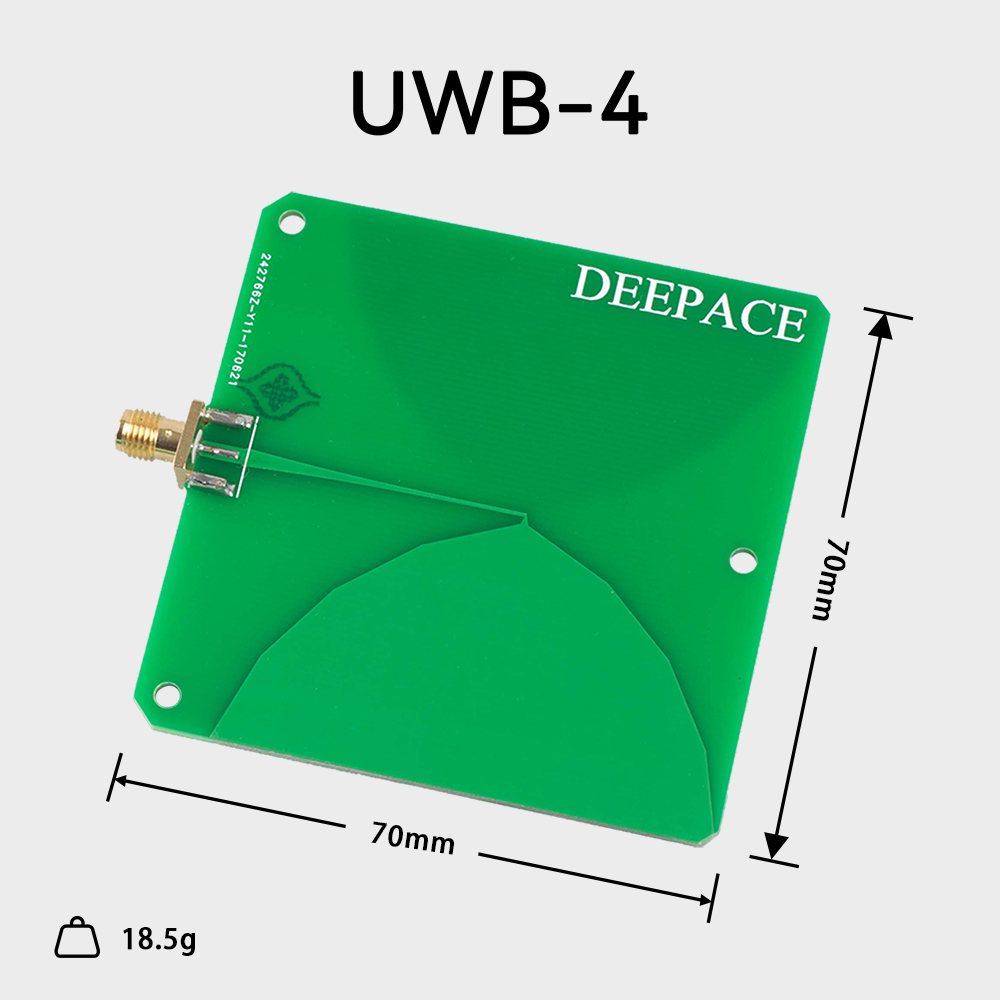

70mmX70mm Not include Connector
Direction sensitivity
Omni
