KC761A Bundle (with Rechargeable Batteries and TF Card)
$345.00
Tax excl. VAT added at checkout by shipping address.
- KC761A with 3 rechargeable batteries and 1 TF card.
- Primary sensor using CsI (2.54cm³) scintillator and SiPM, and auxiliary sensor using PIN tube (16mm²).
- 8.2%±0.4% Resolution.
- Powered by three dry cell batteries (AA/LR6) for up to 10 days of continuous use* (power saving mode on at low count background radiation).
- Support USB (type-C) power supply NiMH battery charge, POE power supply and can automatically switch.
- Weighs 300g and includes a display that can directly show the energy spectrum and other data with no need to connect to a cell phone; IP65 level waterproof.
- Wide range of interfaces, Bluetooth and RJ45 ports (supports POE power) and microSD card slot for easy data transfer.
- With light, sound and vibration alerts.
- Worldwide free shipping.
Buy from Deepace Official
Delivery 10 days or fastest 4-7 days
2 Years Warranty 7 days Refund

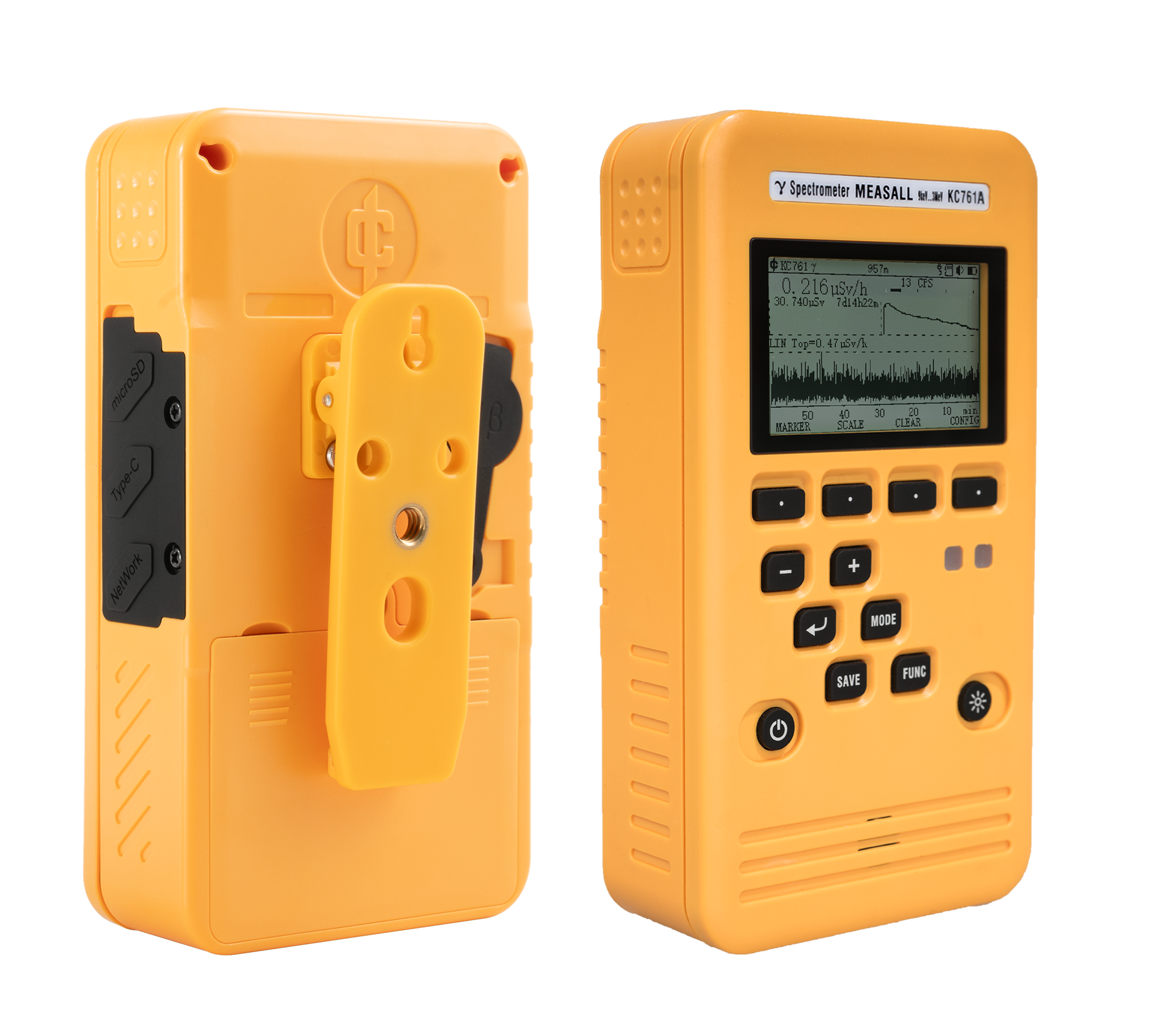

KC761 HANDHELD ENERGY SPECTROMETER – RADIATION DETECTOR
- Main Sensor : 2.54cm³ CsI Scintillation with SiPM
- 662keV FWHM Resolution up to 8.2%
- 9keV~3MeV energy response
- High γ Sensitive : 70 cps/(µSv/h) 662keV
- Auxiliary Sensor : 16mm² PIN Sensor
- Energy compensated dose display and recording
- Wide Usage Range : -10℃~+50℃
- AA Battery powerd for 300h battery life
- Long-term storage
- NiMH battery charge ability
- Android and iOS App connectivity
- IP65 waterproof 1.5m drop protection
- Light Sound and vibration alert
The KC761 is a radiation multimeter based on spectrometer analysis, featuring a scintillation detector as its primary sensing element and an integrated multi-channel analyzer. Through spectrometer analysis, it accurately identifies the energy and intensity of radiation, providing much richer radiation measurement information compared to Geiger counters.
With no consumable parts, the KC761 offers access to all measurement functions without the need for a connected smartphone. Powered by replaceable AA batteries designed for a storage life of up to 10 years, it’s ideal for long-term storage and emergency use scenarios. It boasts comprehensive external interfaces, supporting Bluetooth and Ethernet connections, and can be powered via Power over Ethernet (PoE), enabling the formation of sensor networks for long-term online monitoring. For enthusiasts of nuclear physics, the KC761 can output pulse signals via a 3.5mm jack to connect with a extend analysis system.
Designed with a rugged and flame-retardant shell, it’s suitable for outdoor applications such as exploration, scientific expeditions, accident investigations, and more. It operates reliably within altitudes ranging from -2000m to +30km, and even in vacuum conditions. With an IP65 waterproof rating and the ability to float if dropped in water, it’s built to withstand various environmental challenges.
Sensors & Interfaces
CsI(Tl) Scintillator
The KC761 incorporates a solid-state CsI(Tl) scintillator coupled with SiPM sensors, integrating high-sensitivity/low-noise front-end circuitry. This configuration enables the KC761 to achieve a high FWHM resolution of up to 7.5% and achieve energy responses as low as 9keV or even lower. It excels in the realm of X-ray detection.
PIN Detector
The secondary detector PIN detector features a 16mm² area and is housed in a specially designed casing to maximize signal integrity by minimizing interference. Additionally, it is covered with a Mylar film to prevent light interference. The PIN detector can be used for experiments measuring alpha and beta radiation.
Side Interfaces
Multiple interfaces on the side. USB Type-C, RJ45, TF card slot, and a 4 pin 3.5mm jack. The USB interface facilitates both charging and file transfer operations, RJ45 enables network connectivity for data transmission and PoE power supply. The TF card slot is designated for storing measurement data and exporting, the 4-pin 3.5mm jack can use to connecting headphones and outputting sensor pulse signals.
Second Sensor Slot
Inside the KC761, there is also a second sensor slot that supports optional additional neutron sensor modules.
Spectrum Mode
Unlocking the secrets of radiation sources demands precision and accuracy. Our KC761 spectrometer delivers just that, offering unparalleled insight into the spectral curves of radiation sources.
With an exceptional 8.2% spectral resolution, users can delve deep into the distinct spectral characteristics of various radioactive isotopes.
Auto Peak Searching in MARKER menu
Dose Mode
In dose mode, the KC761 can display a curve of radiation dose versus time.
Similar to Geiger counters, the KC761 also determines radiation dose rate based on pulse counts. By measuring the energy of pulse counts, it can adjust counts according to the sensitivity of the sensor to different energy radiation, achieving more accurate dose rates through a method known as energy compensation. Additionally, as the human body absorbs radiation differently depending on its energy, the device can also provide dose equivalent rates.
The time-dose rate curve can intuitively reveal trends in radiation levels, useful for radiation substance detection. Moreover, the KC761 can calculate and display cumulative doses, offering operators richer information.
Save button
Easily store screen captures and measurement results.
The KC761 can store measurement data onto a TF card (sold separately), allowing for storage of screen captures in .bmp format, DoseRate, spectrum data, and MC-multichannel analyzer raw data in CSV format. The stored spectrum files can be imported into widely used open-source analysis software such as Interspec.

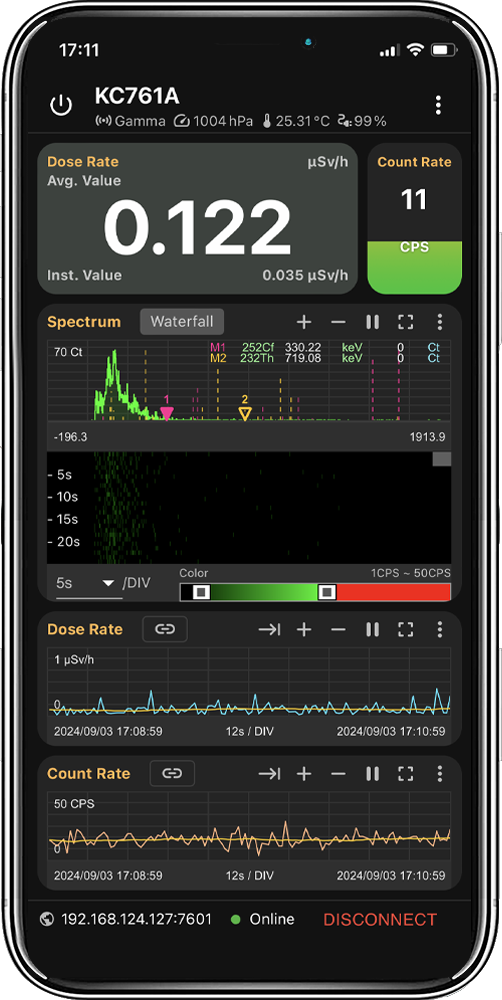

Android/iOS App Connect
Use KCMA App to remote KC761 and export measurement data
Technical Specification
| Object | Condition | Min | Typical | Max | Note |
|---|---|---|---|---|---|
| Energy | γ & X | 9keV | 3MeV | Window open when measure α radiation | |
| β | 50keV | 4.5MeV | |||
| α | 2MeV | 10MeV | |||
| Absorbed Dose Rate of Gamma | 30~500keV | 100μGyh-1 | Energy analysis range | ||
| 0.5~1MeV | 200μGyh-1 | ||||
| 1~3MeV | 500μGyh-1 | ||||
| Strong radiation alert | 100μGyh-1 | 100mGyh-1 | |||
| Gamma Energy Scale Uncertainty | 100cps – 10kcps | ±(1%+5k) | ±(2%+10k) | At the time of delivery | |
| Gamma Energy Resolution | 662keV,100cps – 10kcps | 7.5% | 7.8% | KC761B | |
| 8.2% | 8.6% | KC761A | |||
| 6.2% | 6.5% | KC761C | |||
| 5.9% | 6.2% | KC761CN | |||
| noise | 0.01μGyh-1 | 0.05μGyh-1 | |||
| Sensitive | 662keV, 0.1μGyh-1 | 10cps | |||
| Power voltage | DC | 3.0V | 4.5V | 6V | |
| Temperature Stability | Amplitude drift | ≤±0% | -10 ~ 50°C | ||
| Energy drift | ≤±5% +20) keV | ||||
| Long-term Stability | Gamma | (±5%+10keV)/a | KC761A/B | ||
| (±2%+5keV)/a | KC761C/CN | ||||
| Net weight | Batteries not include | 285g | KC761A/B/C | ||
| 305g | KC761CN |
