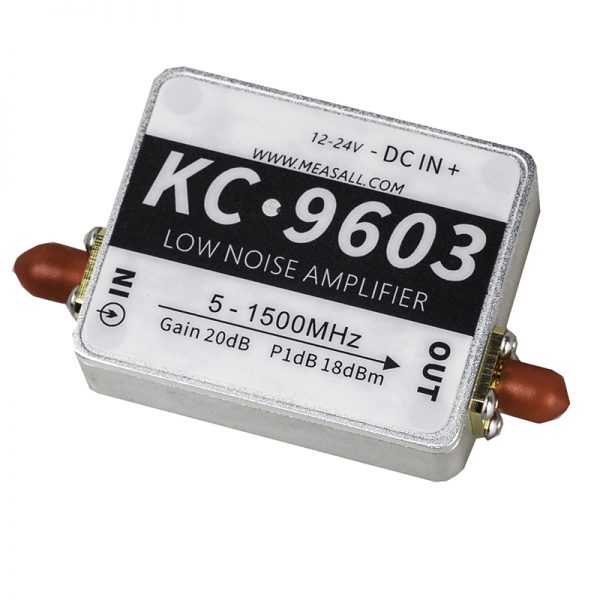

KC9603 LNA 1.5GHz 20dB


Out of stock

SKU: 9603 Category:


Frequence range: 5MHz-1500MHz (300kHz-2000MHz is usable)

Gain: 20dB typ

Min gain: 15dB

Po1dB: 18dBm

NF: 1.3dB

RF Connector: SMA

Power supply: 5V USB port/ 7-15V Power connector
